Automatic Skewer Machine

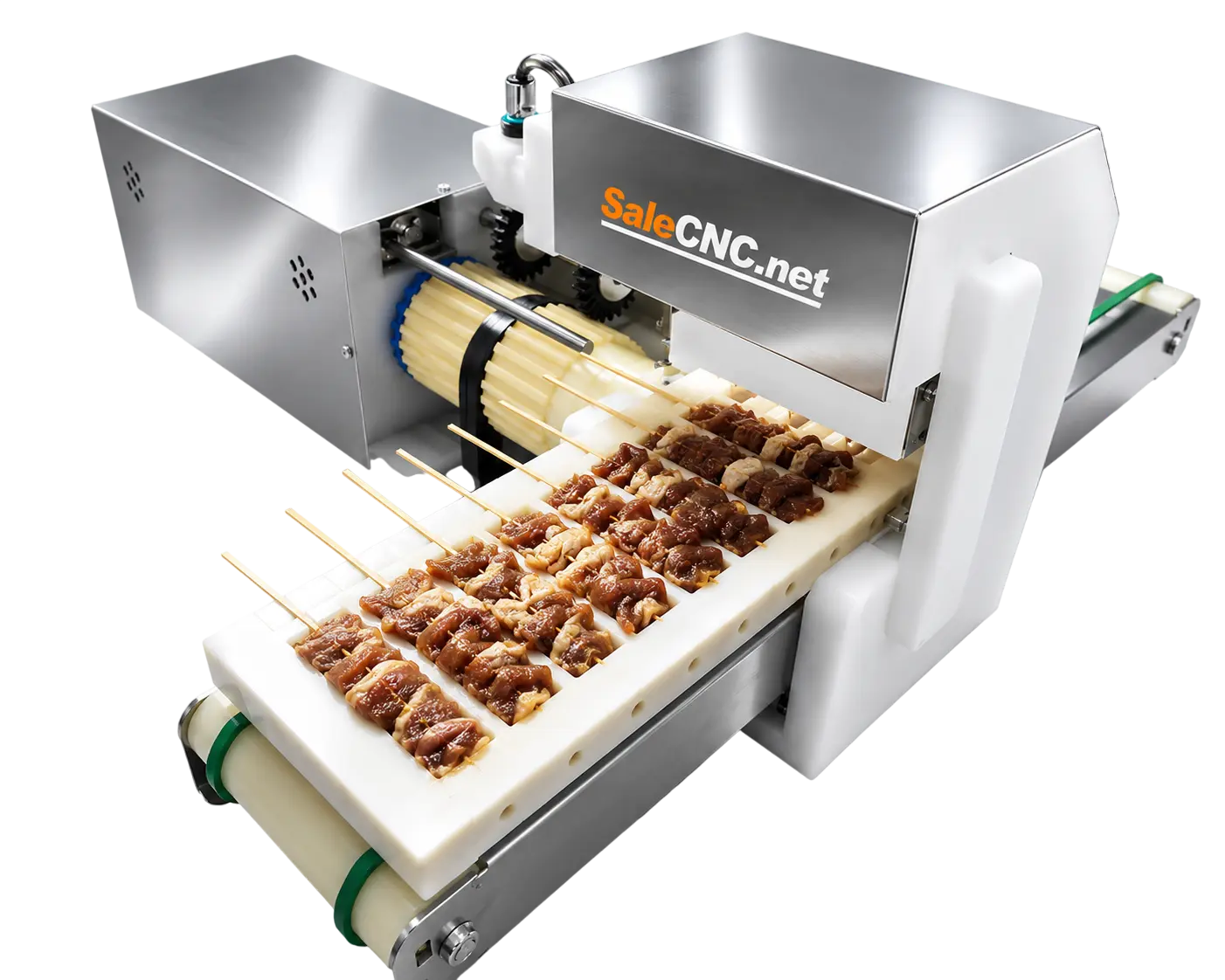

Automatic ‘Pork’ Skewer Machines

Milk-Marinated Grilled Pork • Traditional Pork • Premium Beef Skewers • Satay • Herbal Grilled Chicken • Meatballs • BBQ • Duck Intestines • Lamb

🎉 Manufactured in Thailand — Made in Thailand 🎉

🙏🏻 Thank you to all customers for your continued support 🙏🏻



Size machine Machine size: 800 × 800 × 350 mm
Weight Weight: 19.65 kg
1500-1800 pcs/hour (average about 2-3 sec/pc)
Output: 1,200–1,800 sticks/hour (approx. 2–3 seconds per stick)
Mold plate is not included
Price does not include mold plate

Electronics warranty 365 days (1 year) — subject to company terms and conditions



🍢 How to use the Automatic Skewering Machine (Automatic Skewering Machines) 🍡

• Arrange meat pieces on the mold tray.
• Connect the air hose from the compressor to the machine pressure gauge.
• Turn on air supply (recommended pressure: 2–4 bar depending on production setup).
• Plug in the machine.
• Place the mold onto the conveyor.
• Press start to operate.

salecnc.net skewer machines are widely used in food factories for skewered foods such as BBQ meat, grilled pork, chicken skewers, grilled beef, vegetables, satay, meatballs, processed seafood products, and international dishes such as Japanese yakitori.

Manual skewering requires significant labor. Workers must be skilled and work fast to meet daily targets, which increases accident risk and may reduce productivity.

We offer an Automatic Skewering Machine to assist production. This is a fully automated system.

It can produce approximately 10,000–15,000 skewers within 8 hours — much faster than manual work which produces only one stick at a time. Only one operator is required.





We can customize skewering according to customer specifications. Please provide:

1. Meat width — example: 30 mm
2. Meat length — example: 70 mm
3. Meat thickness — example: 5 mm
4. Stick length — example: 180 mm (No. 6,7,8,9,10)
5. Stick diameter — example: 3 mm

Helps reduce injuries, lowers production costs, small investment but high output, maintains product quality, and reduces contamination risk because operators have minimal contact with food. Easy installation and operation.

Finished skewers are neatly aligned. Manufacturers can control size precisely and maintain consistent standards.

We manufacture custom skewer machines tailored to customer requirements.

A helper for grilled-skewer businesses — Automatic Stick Machine

Run 8 hours — produce over 15,000 sticks!! Ideal for pork skewers, chicken skewers, and satay.

Skewer chicken meat + skin easily with the Automatic Stick Machine.

Machine Structure Overview

Machine size: 900 × 700 × 350 mm

Top view of machine

Load sticks into tray

Power switch

Stick detection sensor

Stick feeding before pushing through meat

Rear view

Mold conveyor exit

Mold conveyor belt

Side view

Power: DC 220V



Specifications

Specification
Model	TC-30S (Digital) / TC-30
Voltage	220 V
Power	0.015 kW
Weight	19.65 kg
Size	800 × 800 × 350 mm
Mold	Custom made

Advantages of using the skewer machine

1. Save time — produces about 14,400 sticks in 8 hours, far faster than manual work.

2. Reduce accidents — eliminates risks from manual skewering.

3. High output with low investment — long-term cost efficiency.

4. Easy installation and operation — compact size and simple maintenance.

5. Reduce labor — operator only arranges meat on molds.

6. Hygienic — minimal food handling reduces contamination risk.

7. Consistent quality — prevents bruising or discoloration caused by manual pressure.

Warranty Exclusions

X Damage from rodents chewing wires
X Dropping the machine
X Water entering machine (marinade water, cleaning water, rainwater)

1–2 = Electric
3 = Switch
4 = Bottom sensor
5 = Up/Down sensor (bottom)
6 = Up/Down sensor (top)
7 = Stick sensor
8 = Rear cylinder push
9 = Top cylinder push
